Sonofonic Acoustic Ceiling Panels

So Why Sonofonic?

High Acoustic Performance

Sonofonic Acoustic Ceiling Panels are designed to provide a quiet, visually pleasing environment for interior spaces that may be otherwise difficult to utilise fully, simply because noise levels may be unacceptably high, or reverberation causes speech or audio to be hard to hear clearly.  Sonofonic Panels consist of a lightweight fire resistant core with a cleanable, slightly textured paint finish. The panels are available with a variety of edge profiles to fit most available suspended ceiling grid systems. Typical applications include boardrooms, open plan commercial offices, lecture theatres and hospitality function rooms.



Features and Benefits
  • Excellent sound absorption.
  • First-rate surface finishes that are textured, cleanable and paint finish. There is a choice of three finishes.
  • Light Reflectance: High (standard finish is flat white)
  • Humidity, sag and moisture resistant.
  • Designers can choose from a range of edge profiles to tailor the panels to the desired look.
  • Lightweight (approx. 2.5 kg/m2 for 20mm thick panel).
  • Fire Performance: British Standard BS476 Part 6&7 : Class 1 (Surface Spread of Flame)





Available Surfaces

Sonofonic Ceiling Panels are coated with a durable finish called Tonasorb™. This finish is available in three grades, 700 Microporous, 600 Embossed, and S101 Textile — each of which provides a different combination of subtle  textured appearance and sound absorption performance.

Tonasorb gives Sonofonic Ceiling Panels a high impact, cleanable surface but allows sound waves through to be dissipated by the sound absorbing substrate. Tonasorb has a very high light reflectance for both incident daylight and internal lighting systems.  Tonasorb finish is factory applied to the face and all  exposed edges of the panels. The rear side of all Sonofonic panels is sealed with a non woven glass fibre scrim.



Acoustic Performance

Surface Facing

Ref. No.

Thickness (mm) Sound Absorption Coefficient
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 3150 Hz 4000 Hz 5000 Hz NRC
700-010 15 0.88 1.12 1.16 0.88 1.08 1.08 1.00 1.04 1.00
700-010 20 0.45 0.80 1.00 0.90 1.00 1.03 1.02 1.03 1.00
600-002 15 0.64 1.00 0.96 0.80 0.92 1.04 1.00 1.08 0.90
600-002 20 0.72 0.92 0.92 0.80 0.92 1.00 0.92 0.96 0.90
S101-001 15 0.48 0.96 0.92 0.70 0.80 0.96 0.88 1.00 0.90
S101-001 20 0.55 0.80 0.90 0.85 0.95 1.01 1.03 1.01 0.90
S101-001 50 0.23 0.64 1.11 1.28 1.22 1.08 1.05 1.05 1.06

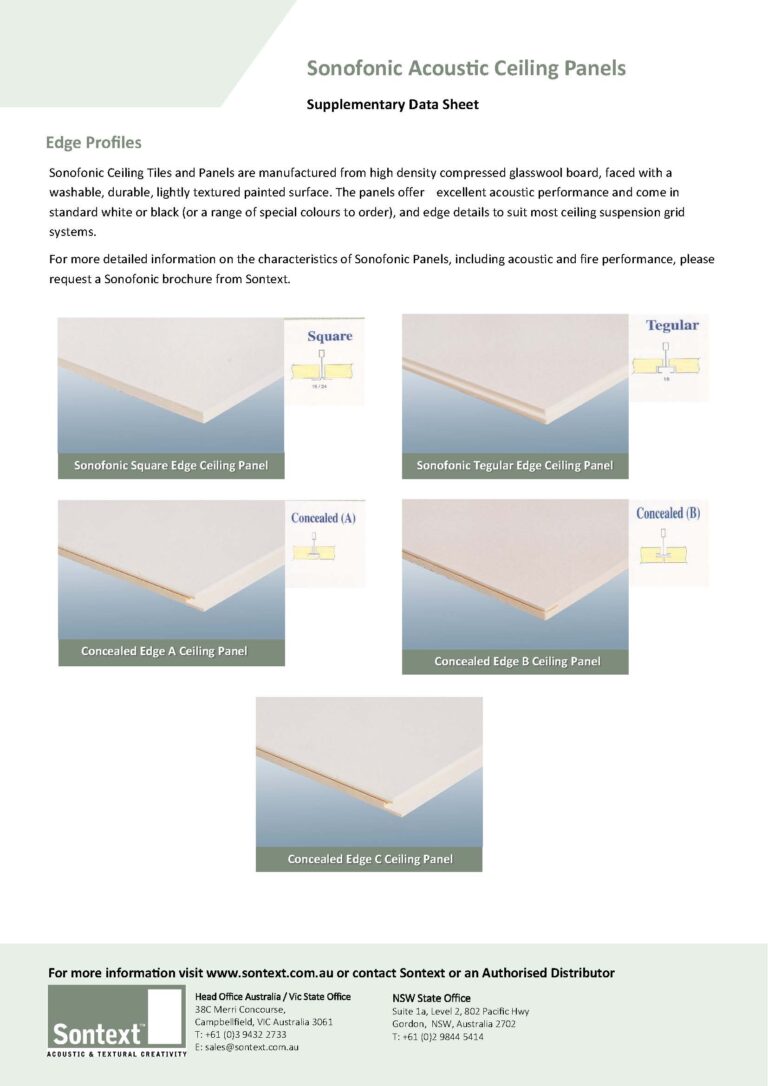

Concealed Edge A Ceiling Panel

Concealed Edge A

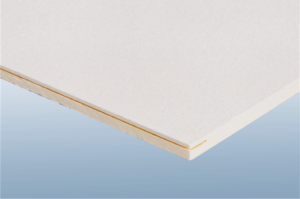

Concealed Edge B Ceiling Panel

Concealed Edge Ceiling Panel Sonofonic

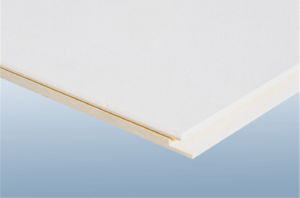

Concealed Edge C Ceiling Panel

Sonofonic Concealed Edge

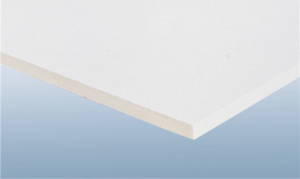

Sonofonic Square Edge Ceiling Panel

Sontext Square Edge Ceiling Panel

Sonofonic Tegular Edge Ceiling Panel

Tegular Edge Sonofonic Ceiling

Sonofonic Brochure Download Now

Sonofonic Brochure Download Now

Click Here for Datasheet Download
